Residual Current Module For RCD
LEAKAGE CURRENT PROTECTION MODULE SENSORS
A functional module that integrates A+6mA or type B residual current detection unit and a micro-processing unit can be used for residual DC detection device RDC-DD, EV type residual current action circuit breaker, and type B residual current action circuit breaker. When the action threshold set by the module is reached, the module will output a tripping signal, and the user can introduce this signal into the tripping device to achieve tripping protection.
Meet Standard
GB/T 22794
GB 16916.1
GB 16917.1
GB/T 40820
IEC 62955
IEC 62423
Product Features
Single power supply 6V power supply
High and low level output
Easy to install
Typical Application
RCD/RDC-DD
| Series | Model | Package style | Power supply （V） |
Through hole ability （mm） |
Application scenario |
|---|---|---|---|---|---|

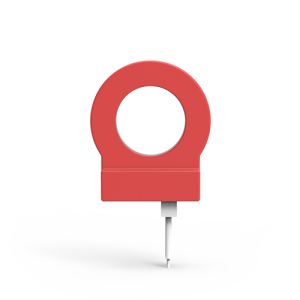

| Leakage Current Protection Module Sensors | ME3301CS |  |
+6V | 14.42 | RDC-DD/EV type residual current action circuit breaker |

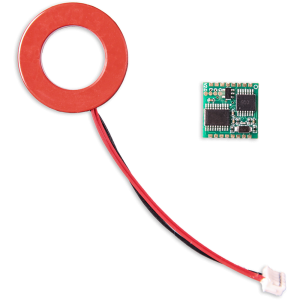

| MB3301AS | |
+6V | 14.42 | Type B residual current action circuit breaker | |
| MB3303AS |  |
+6V | 14.5 | Type B residual current action circuit breaker |
